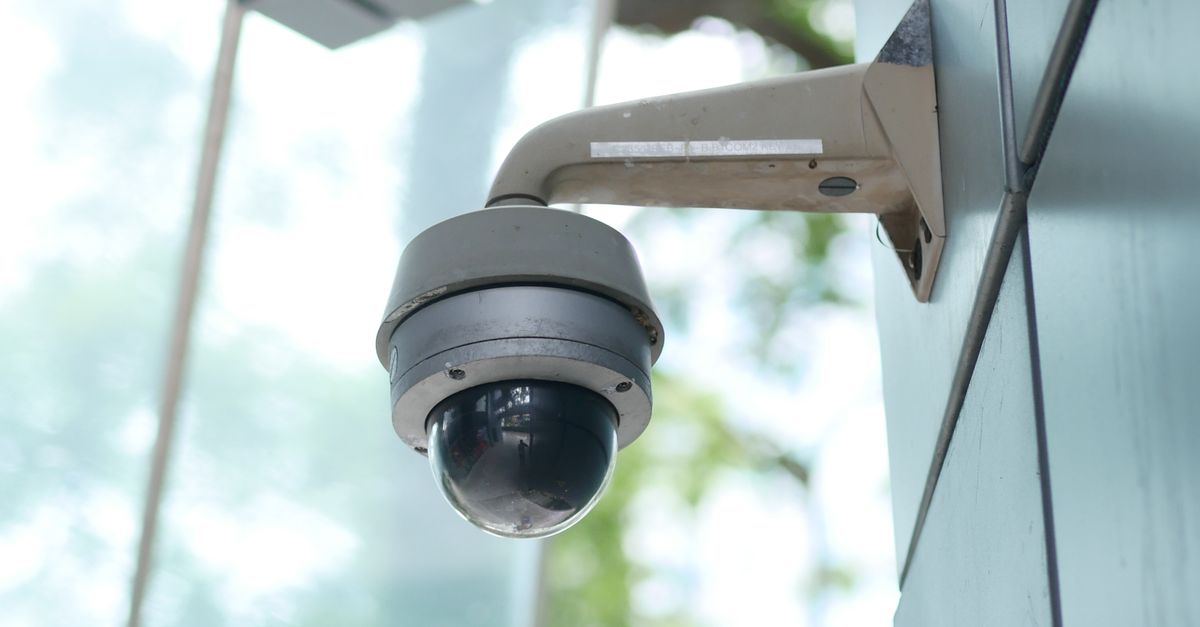

How to Adjust Field of View for Your CCTV Cameras

Table Of Contents

Tools Required for Adjustment

When adjusting the field of view on your CCTV cameras, having the right tools on hand is essential for achieving optimal results. You will need a ladder or a stable platform to reach the camera, especially if it is mounted high. Additionally, a screwdriver set is crucial for loosening or tightening the camera’s mounting bracket. A spirit level can help ensure the camera is aligned properly, and a tape measure will assist in gauging distances for precise placement.

Software tools may also play a role in fine-tuning your adjustments. Many modern CCTV systems come with a corresponding app or software platform that allows you to view live footage and make adjustments remotely. Familiarise yourself with these applications, as they may provide options for digital zoom or cropping, which can affect the overall field of view. A notebook or a mobile device can be helpful for jotting down adjustments made during the process, ensuring you can track changes and revert if necessary.

Essential Equipment and Software

To effectively adjust the field of view of CCTV cameras, certain equipment and software are essential. A reliable wrench set helps in physically adjusting the camera’s position and tilt. A screwdriver set allows for easy access to any mounting screws that may need to be tightened or loosened. A level is also beneficial to ensure that the camera is properly aligned, preventing any skewed footage that may compromise monitoring.

Additionally, video management software plays a crucial role in evaluating the effectiveness of adjustments made to the camera. This software enables users to access live feeds and recorded footage, offering insight into the coverage area. Some programs come with built-in tools for zooming in on specific areas, allowing for detailed analysis of blind spots or areas needing better coverage.

Common Mistakes to Avoid

When adjusting the field of view for CCTV cameras, many overlook the importance of understanding the camera's specifications. Each model comes with specific capabilities, such as lens size and sensor type, which can significantly influence the field of view. Failing to consider these factors may result in inadequate coverage or blind spots, undermining the effectiveness of video surveillance.

Another common pitfall is neglecting to account for environmental variables. Factors like lighting conditions, obstructions like trees and buildings, and the height at which the camera is mounted can impact the adjusted field of view. Ignoring these elements might lead to unexpected gaps in visibility, reducing the overall security provided by the system. It's essential to assess the environment thoroughly before making final adjustments.

Overlooking Camera Specifications

Understanding the specifications of your CCTV camera is crucial for achieving the best possible field of view. Different cameras have distinct field of view angles, which can vary significantly based on their type and model. For example, wide-angle lenses provide a broader view, while telephoto lenses offer a more focused perspective. Failing to consider these specifications can lead to inadequate coverage of the intended monitoring area.

Additionally, the placement of your cameras should complement their specifications. A camera with a narrow field of view might require positioning closer to the target area for effective surveillance. Conversely, wide-angle cameras may necessitate careful positioning to avoid distortion at the edges of the frame. Neglecting to take these factors into account could result in blind spots or overly distorted images, diminishing the effectiveness of your security system.

Testing the Adjusted Field of View

After making adjustments to the field of view of your CCTV cameras, it is essential to evaluate the results carefully. This involves reviewing the captured footage to ensure all critical areas are adequately covered. Watching the playback at various times of day can reveal whether the camera settings function effectively under different lighting conditions. Positioning test objects within the camera's view will also help determine if the field of view enhancements meet your security needs.

Utilising tools such as a measuring tape or laser distance measurer can assist in assessing the reach of the camera's view. Mark the areas you wish to monitor and compare them with the footage to see if any blind spots remain. Recording the results of these assessments can be beneficial for future reference and adjustments. Consider setting benchmarks for optimal coverage to streamline monitoring practices and enhance overall security performance.

Methods for Evaluating Coverage

Evaluating the coverage of your CCTV cameras is crucial to ensure optimal security. One effective method involves physically inspecting the areas monitored by the cameras. Walk around the designated space and observe the live feed or recorded footage. This allows for a firsthand assessment of whether vital spots are captured adequately. Pay attention to blind spots or areas where the camera’s view may be obstructed, adjusting the angle or position as necessary to cover all crucial zones.

Another approach involves employing a simulation or mapping software that can visually represent the camera’s coverage area. Many modern systems come with this feature, allowing for a virtual walkthrough of the space. By inputting the camera’s specifications, such as lens type and mounting height, you can simulate the field of view and identify gaps in coverage. This method provides a comprehensive analysis before making adjustments, saving time and resources in the field.

FAQS

What tools do I need to adjust the field of view for my CCTV cameras?

To adjust the field of view for your CCTV cameras, you typically need a ladder or pole for reaching high cameras, a screwdriver for making physical adjustments, and possibly software for digital adjustments, depending on the camera model.

How can I avoid common mistakes when adjusting my CCTV camera’s field of view?

To avoid common mistakes, ensure you thoroughly understand your camera specifications, double-check the installation angle, and avoid making adjustments without testing the coverage first.

What are the key specifications to consider for my CCTV camera?

Key specifications to consider include the camera's focal length, resolution, lens type (fixed or varifocal), and the sensor size, as these factors will affect the field of view and overall coverage.

How do I test the adjusted field of view for my CCTV cameras?

You can test the adjusted field of view by reviewing live footage or recordings to ensure that the desired areas are covered and no blind spots remain. Adjustments can be made based on these observations.

Is it necessary to use software for adjusting the field of view?

While not always necessary, using software can provide more precise adjustments for certain camera models, especially those with digital zoom or advanced settings. It can also help in evaluating the coverage more effectively.
